How to Choose the Perfect Filtration System for Your Pond

Crystal clear water doesn't happen by accident. Behind every beautiful pond is a well-designed filtration system working tirelessly to maintain water quality and clarity. But with so many options available, how do you choose the right filter for your specific needs?

Understanding Pond Filtration Basics

A complete pond filtration system performs three crucial functions:

1. Mechanical Filtration: Traps debris and particles that can cloud your water
2. Biological Filtration: Uses beneficial bacteria to break down fish waste and organic matter
3. UV Clarification: Optional component that helps control single-cell algae blooms

Most quality filtration systems for medium to large ponds combine mechanical and biological filtration in one unit, with the option to add UV clarification.

The Science Behind Biological Filtration

The real magic of pond filtration happens through biological processes. Specialized filter media provides surface area for beneficial bacteria to colonize. These microscopic helpers transform harmful ammonia (from fish waste and decaying matter) into nitrites and eventually into harmless nitrates that actually benefit your plants.

Establishing a robust bacteria colony naturally takes up to seven weeks, but you can accelerate this process by adding bacterial supplements available in liquid or granular form.

Pro Tip: When cleaning your biofilter, never use tap water or aggressive cleaning methods. Gently rinse mechanical filter elements in a bucket of pond water to preserve your beneficial bacteria.

Types of Pond Filters

In-Pond Filters

These compact units are positioned directly in the water, often attached to or surrounding your pump. They work well for:

• Small ponds (typically under 250 gallons)
• Ponds where you want to run both a fountain and small waterfall

Important Note: Don't confuse these with simple pump pre-filters, which only protect your pump from debris but don't actually filter the pond water.

Above-Ground Filters

These larger systems sit outside your pond and come in two main varieties:

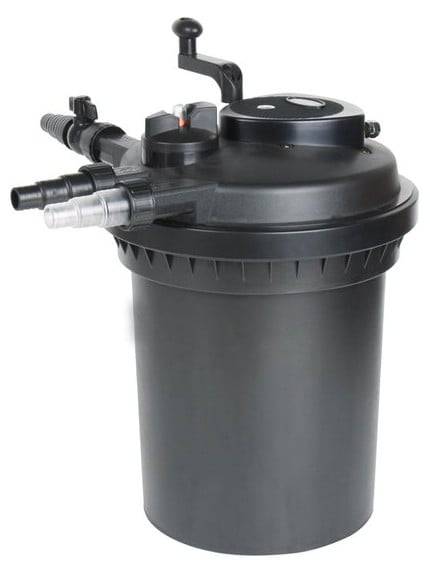

Pressurized Filters

• Can be positioned anywhere around your pond
• Can be camouflaged or partially buried
• Can push water uphill to feed waterfalls
• Easy to maintain without getting wet

Gravity-Discharge Filters

• Must be positioned at the highest point of your system
• Water exits via gravity flow only
• Perfect for installations where the filter sits above the waterfall

How to Select the Right Filter Size

The key to proper filter selection is understanding your pond's effective volume, which accounts for environmental factors beyond just the water capacity.

For standard ponds, choose a filter rated for your pond's effective volume (plus any adjustment for heavy fish stocking).

Small Pond Tip: For ponds under 250 gallons, select a filter rated for double your effective volume. A 150-gallon small pond should use a filter rated for 300 gallons.

Setting Up a Basic Filtration System

For simple water filtration without waterfalls:

1. Select a filter rated for your effective pond volume
2. Choose a pump that delivers flow within the filter's recommended range
3. Position the pump and filter to maximize circulation (place the pump opposite the filter discharge)
4. Use appropriately sized tubing based on your pump's flow rate

Maintenance Tip: For easier maintenance, look for pumps with screen housings rather than foam pre-filters, which clog quickly and require frequent cleaning.

Combining Filtration with Waterfalls

Creating a filtered waterfall system requires careful planning:

With Pressurized Filters:

For the most efficient setup:

• Position the filter to minimize the distance between the filter discharge and the waterfall
• Calculate the total head at the filter intake
• Choose a pump that delivers the appropriate flow at that head height
• Ensure the resulting flow rate matches your desired waterfall effect

If your desired waterfall flow exceeds your filter's capacity, you have three options:

1. Choose a larger filter
2. Use a separate pump for the waterfall
3. Split the flow from a larger pump between the filter and waterfall

With Gravity-Discharge Filters:

These must be positioned at the top of your waterfall, which means:

• Your waterfall flow will be limited to your filter's flow capacity
• You'll need to calculate the total head to the filter's intake position
• The pump must deliver the appropriate flow at that head height

The Bottom Line

Selecting the right filtration system doesn't have to be complicated. Consider your pond's size, your aesthetic goals, and your maintenance preferences. Whether you choose an in-pond solution for your small water garden or a sophisticated above-ground system for your koi pond, the result will be the same: crystal clear water that showcases your aquatic paradise at its best.
