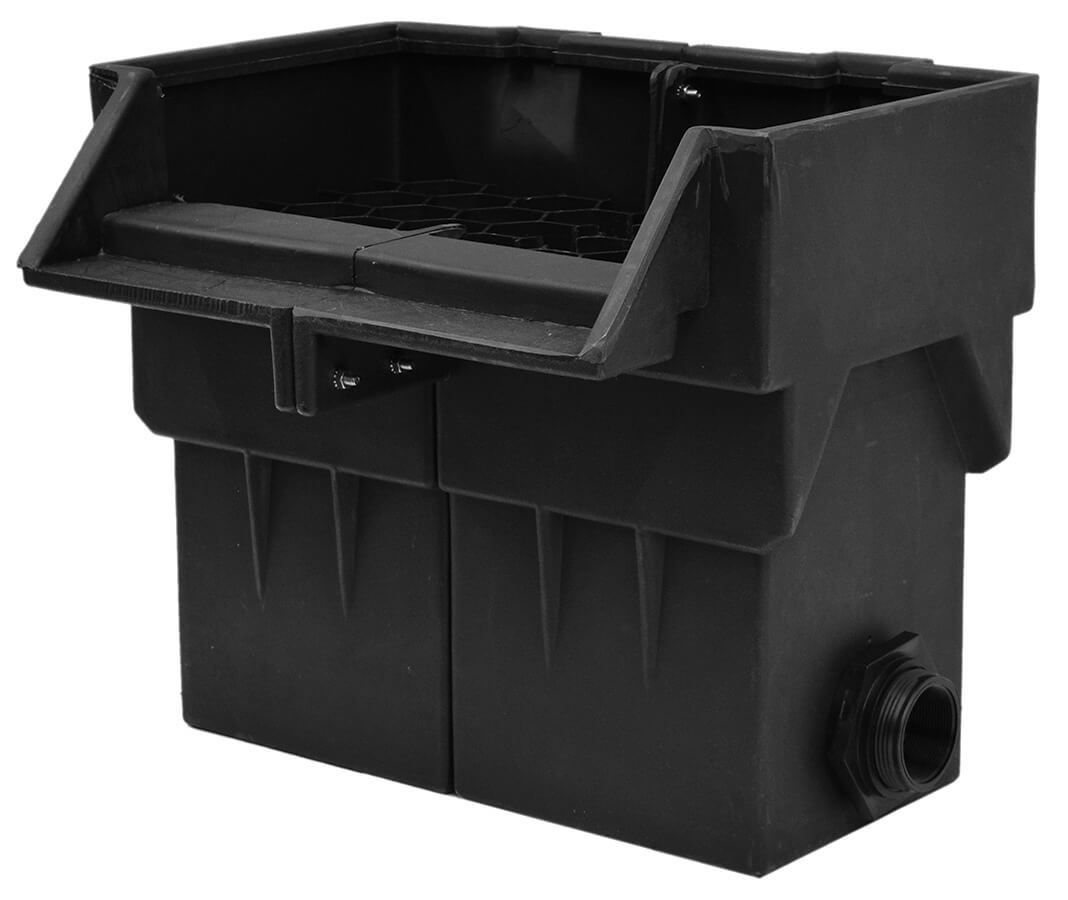

Expandable Modular Waterfall Spillway 34" (86 cm) Wide, Assembled
The EasyPro EWS34 Pro-Series EasyLedge Spillway is a 34" (86 cm) wide modular waterfall spillway that ships fully assembled and ready to install. Part of the first expandable waterfall spillway system on the market, the EasyLedge series can be extended up to 34 ft (10 m) wide by adding straight, inward-curving, or outward-curving extension modules.
Expand Your Waterfall to Any Width
Dual bulkhead fittings on both sides of the spillway allow you to add EWE16 (straight), EWI16 (inward curve), or EWO16 (outward curve) extension modules to reach any desired width. Assembled straight spillways of 18", 34", and 50" ship ready to use; curved and wider configurations are supplied unassembled for shipping. The EasyLedge system allows waterfalls up to 34 ft (10 m) wide to be built from standard components, with Left/Right end assemblies (EWLR2 or EWLR3) completing each run.
| Specification | Value |
|---|---|
| Spillway Width | 34" (86 cm) |
| Configuration | Straight, assembled |
| Inlet Connections | Dual bulkhead fittings, both sides |
| Expansion | Add EWE16, EWI16, EWO16 modules or EWLR end pieces |
| Max Expandable Width | Up to 34 ft (10 m) using extension modules |
| Shipping | Ships assembled |
How to Install
Position the spillway at the desired height at the top of your waterfall. Connect the liner to the back flange and attach the pump discharge to one or both bulkhead inlets depending on flow requirements. For wider builds, connect extension modules to the sides before securing the EWLR left/right end pieces. Backfill and finish the surrounding area with rock and stone to complete the feature.
Ideal for medium to large pondless waterfalls and statement landscape features requiring a modular, expandable waterfall edge design.
