1 HP Bottom-Up Aeration for Ponds up to 5 Acres and 50 Feet Deep

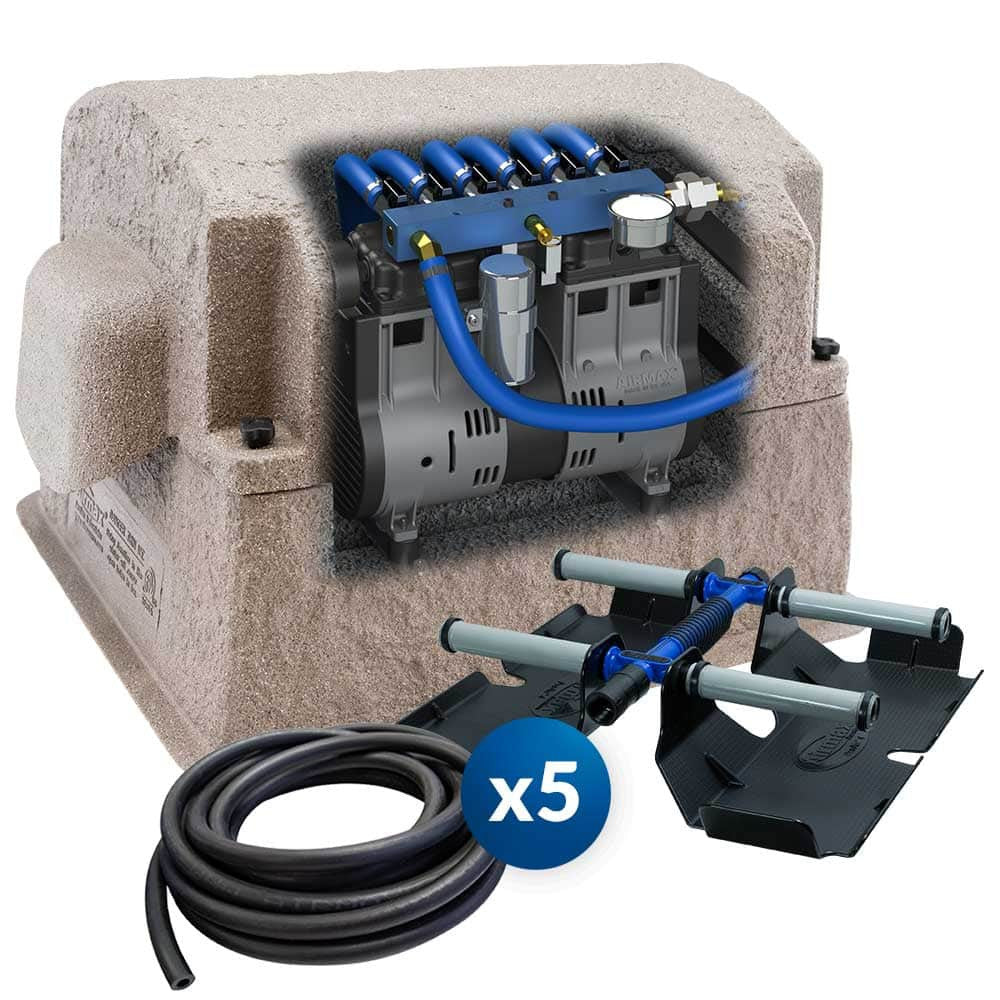

The Airmax PondSeries PS60 with 5 diffusers is a commercial-grade aeration system for large ponds and lakes up to 5 acres (2 ha). The 1 HP SilentAir™ rocking piston compressor incorporates SmartStart Technology for smooth restarts after power interruptions and runs with significantly lower noise and power consumption than comparable piston or rotary vane compressors. Five ProAir 4 weighted membrane diffusers deliver maximum dissolved oxygen across the entire water column, suppressing algae, reducing muck, and maintaining fish health through all seasons.
ProAir 4 Weighted Membrane Diffuser
The ProAir 4 uses a high-efficiency membrane stick that produces finer bubbles for better oxygen transfer than traditional ceramic or stone diffusers. An integrated check valve prevents back-pressure on the compressor, and the sled base ensures stable upright positioning on any pond substrate.
System Specifications
| Coverage | Up to 5 acres (2 ha) |
|---|---|
| Max Depth | 50 ft (15 m) |
| Compressor | SilentAir™ 1 HP rocking piston with SmartStart |
| Diffusers Included | 5 × ProAir 4 weighted membrane diffusers |
| Airline | Not included (sold separately) |
| Warranty | 3-year compressor, 5-year diffuser |
| Certifications | ETL Listed, Made in the USA |
Installation note: EasySet weighted or direct-burial airline must be selected separately. A post-mount cabinet kit is available for shoreside installation.
