Aqua UV Part - Ultima Ii, Handle, for 1-1/2" Valves
AU-RP-A50064

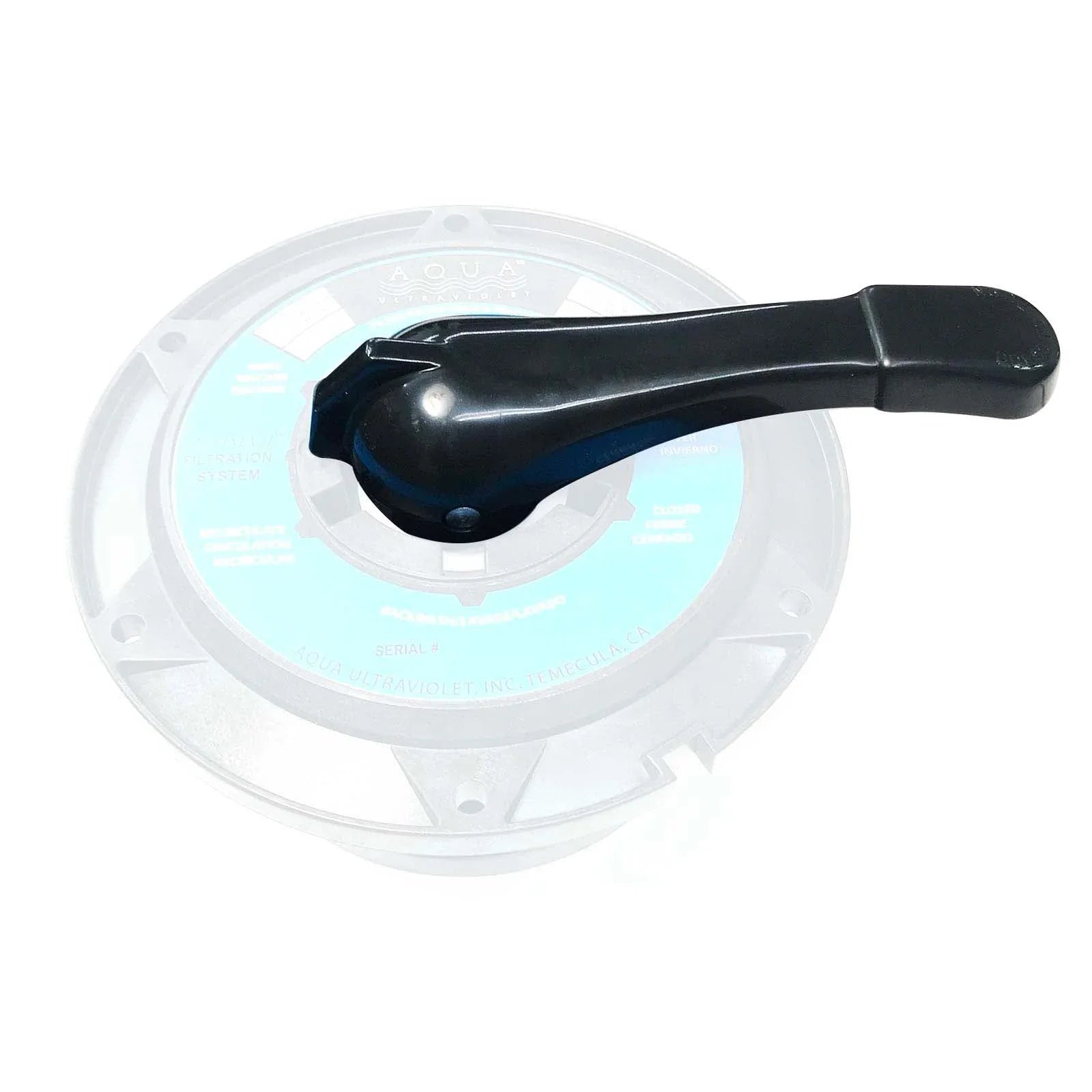

Replacement Valve Handle for Aqua UV Ultima II, 1.5" Multi-Port Valve
This is the external lever only — the handle that mounts to the valve shaft on Ultima II filters fitted with 1.5" multi-port valves. If the internal linkage on your handle assembly still operates smoothly but the lever itself is cracked, faded, or broken, this replacement gets the filter back to full operation without replacing the full key handle assembly.
Which Part Do You Need?
If the lever arm is broken or deteriorated but the valve turns smoothly when you grip the shaft, order this handle. If the valve itself sticks, skips positions, or won't seat properly, you need the full key handle assembly (AU-RP-A50061), which includes the internal linkage.
| Specification | Value |
|---|---|
| Valve Compatibility | Ultima II filters with 1.5" (1-1/2") multi-port valves |
| Material | UV-resistant nylon |
| Mount Style | Slides onto key shaft, secured with retaining bolt |
Installation
Depressurize the filter system before starting. Remove the retaining bolt from the existing handle. Slide the old handle off the valve shaft. Position the new handle over the shaft, align the keyway, and install and tighten the retaining bolt. Test through all valve positions to confirm smooth operation and positive detents at each setting.
Ideal for Ultima II pond filter owners whose valve operates correctly but has a broken or deteriorated external lever.
