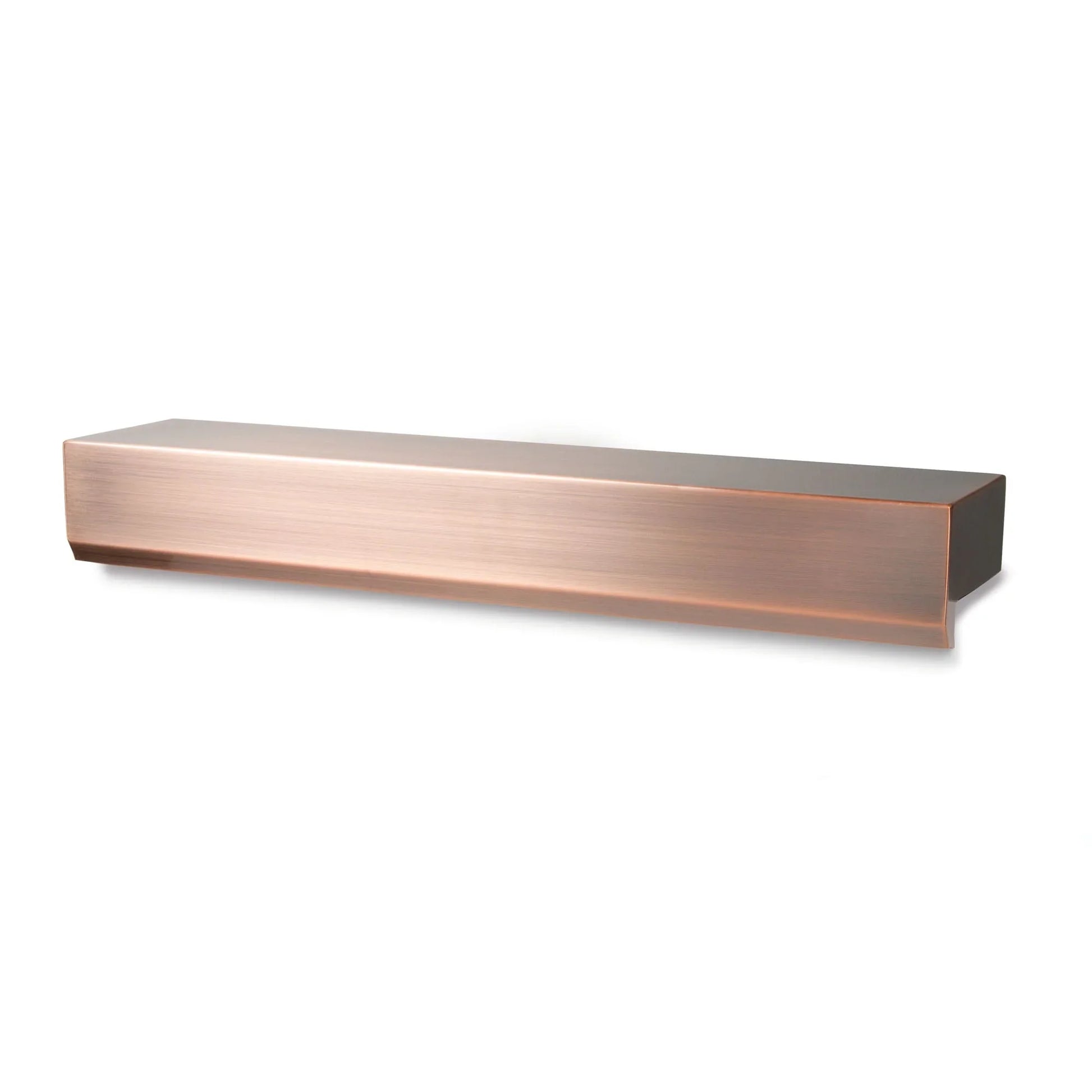

Atlantic Water Gardens 24" Copper Finish Water Wall Spillway
AT-CWS24-316
Seamless Vertical Water Feature
The Atlantic Water Gardens 24-inch copper finish water wall spillway delivers a full-width sheet of water across a vertical surface, creating the signature water wall effect — a glass-like curtain of water flowing continuously from top to bottom of a wall or panel. The warm copper finish brings organic character to the installation while the 24-inch format creates a feature wide enough to serve as a true design centrepiece in any garden or outdoor room.
True Water Wall Flow, Not Just a Scupper
Unlike a scupper that delivers an arc of water, the water wall spillway is designed to flow in contact with the vertical surface below the spout, creating the adhesion-effect "water wall" appearance where the sheet clings to the wall face as it descends. This effect requires a flat, smooth wall surface below the spillway and a flow rate matched to the 24-inch width — too high and the sheet bounces away from the wall; too low and it breaks into rivulets. The 600–1,800 GPH (2,271–6,814 LPH) range is optimal for the water wall effect on this size.
| Width | 61 cm (24") |
|---|---|
| Finish | Copper (develops natural patina) |
| Inlet | 1.5" FPT |
| Optimal Flow for Wall Effect | 600–1,800 GPH (2,271–6,814 LPH) |
| Wall Surface Required | Smooth and plumb to within 2 mm |
| Mounting | Top of wall / panel surface mount |
How to Install
Install at the top of a smooth, plumb vertical surface. Supply with 1.5-inch plumbing from a pump delivering 600–1,800 GPH. The wall surface must be perfectly plumb and smooth — textured or uneven surfaces break the water sheet into channels. Seal all wall penetrations fully. A basin or trough at the base captures returning water for recirculation.
Ideal for contemporary outdoor water walls, spa features, and statement garden installations across Canada.
