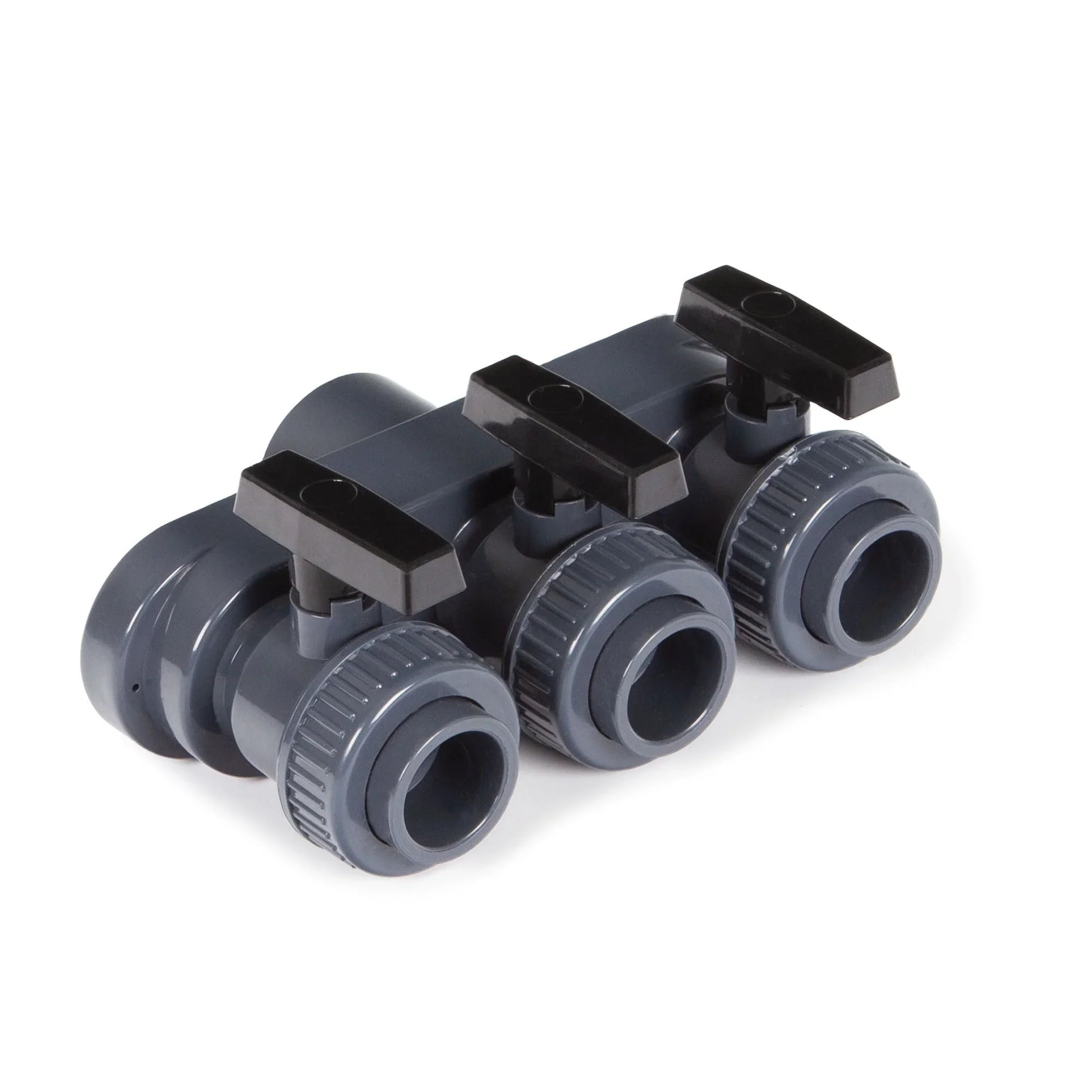

Atlantic Water Gardens Ecorise Diverter - 3 x 1 Inch

3-to-1 Inch Flow Diverter for Multi-Output Fountain Plumbing

The Atlantic Water Gardens Eco-Rise diverter is a moulded plumbing fitting that splits a single 3-inch riser column output into individual 1-inch supply lines for multi-port fountain plumbing applications. Where a single riser feeds multiple display elements — a trio of spheres, three independent water jets, or a combination of sphere and independent outlet — the Eco-Rise diverter distributes flow evenly across all connected outputs without requiring separate pumps or external distribution manifolds.

Function & Compatibility

The diverter mounts at the top of an Eco-Rise riser column and accepts the 1-inch output tubes that run to individual fountain display elements. The internal geometry balances flow across all outlets, preventing one outlet from starving the others. It is compatible with the 12-inch and 20-inch Eco-Rise risers and with the Eco-Rise triple plumbing kit, which provides all the tubing and fittings for a complete three-outlet installation.

Installation Notes

The diverter seats into the top of the riser column with a press-fit connection. Each 1-inch output port accepts standard Eco-Rise plumbing tubing. Position the pump in the base of the riser column at the basin floor — the pump's full output travels up the riser and then splits evenly at the diverter. For best results, ensure the connected display elements all have similar flow resistance so the diverter can equalise flow naturally.

• Splits single riser output into three independent 1-inch supply lines
• Even internal geometry distributes flow across all three outlets
• Compatible with 12" and 20" Eco-Rise riser columns
• Use with Eco-Rise Triple Plumbing Kit for complete multi-outlet installation
