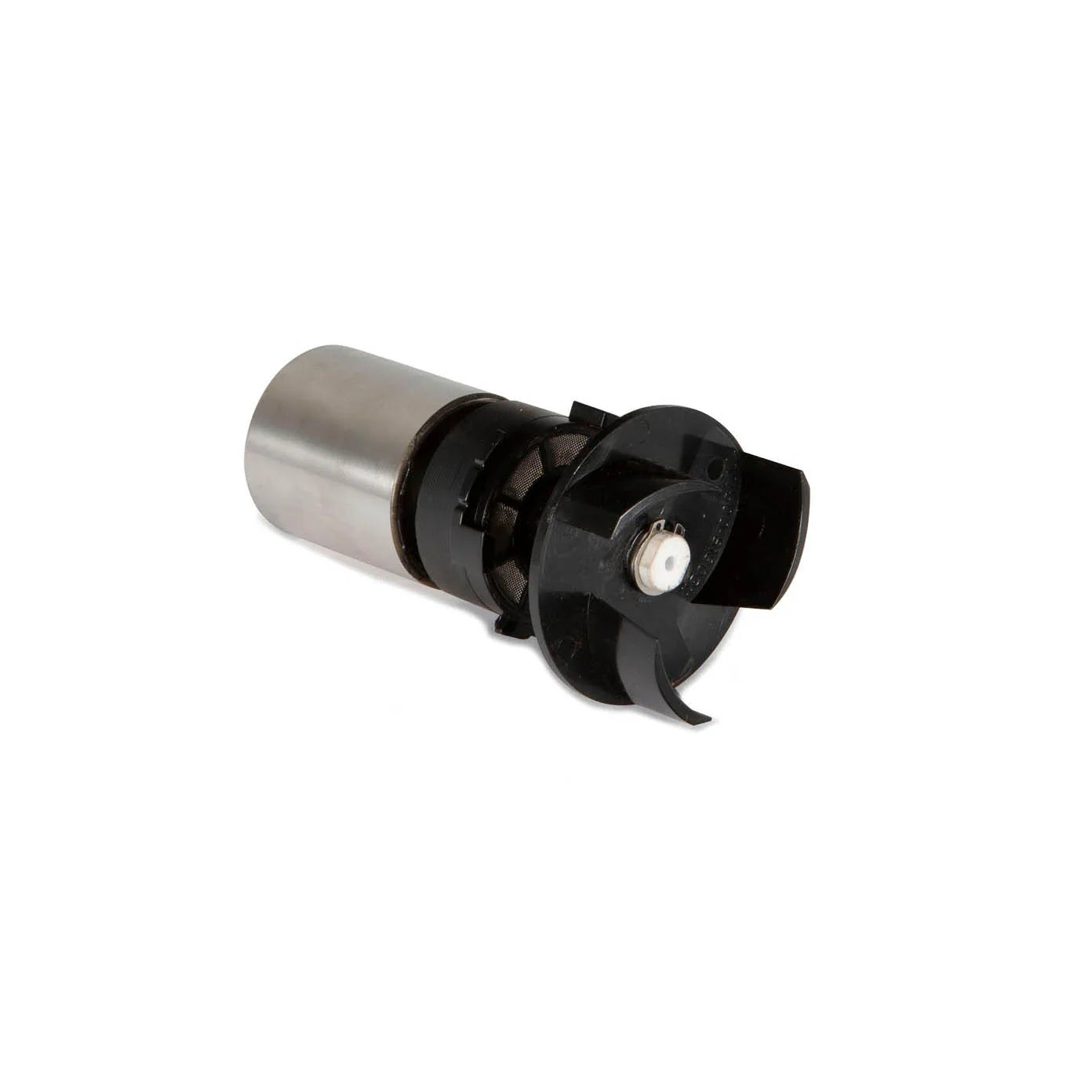

Atlantic Water Gardens Tt7500 Replacement Impeller
AT-RP-TTI-7500
OEM Part for Large-Scale Water Features
The Atlantic Water Gardens TT7500 replacement impeller is the genuine factory part for the TidalWave3 TT7500 waterfall and stream pump. Restoring the TT7500 with a fresh impeller returns the pump to its rated 7,650 GPH (28,960 LPH) — maintaining the powerful, dramatic water movement that large professional pond installations require.
Heavy-Duty Construction for High-Volume Operation
At 7,650 GPH, the TT7500 is among the highest-capacity pumps in the TidalWave3 lineup. Its impeller must withstand constant high-speed operation at 520W. Blade erosion, mineral scale, or physical damage can substantially reduce output. The genuine OEM replacement maintains the factory tolerances and material specifications required to handle this demanding duty cycle reliably season after season.
| Compatible Pump | TidalWave3 TT7500 Waterfall & Stream Pump |
|---|---|
| Rated Flow (parent pump) | 7,650 GPH (28,960 LPH) |
| Plumbing Size | 2" inlet/outlet |
| Motor Type | Asynchronous (TidalWave3 series) |
| Power Draw (parent pump) | 520W |
How to Replace
Remove the TT7500 from the pond and disconnect power. Open the volute cover by rotating counter-clockwise. Swap out the worn impeller, seat the new one firmly, and reinstall the volute. Check that the impeller rotates freely before returning the pump to service. Inspect at every spring startup and replace as needed to maintain rated flow.
Ideal for professional installers and experienced pond builders maintaining large high-flow water features.
