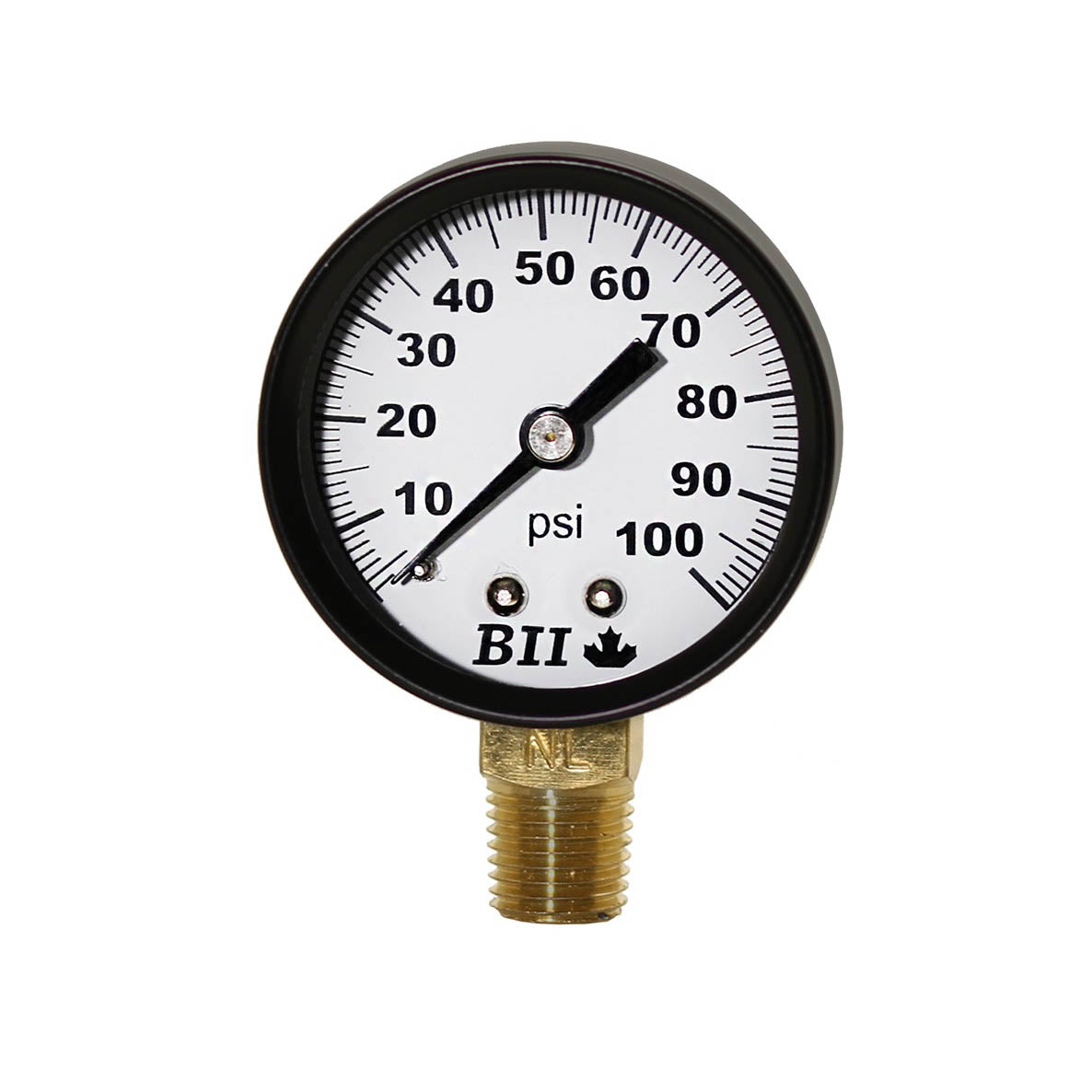

Boshart 2" Dry Gauge 1/4" Lm 0-100

Dry Pressure Gauge 0-100 PSI

Boshart's PG-100 dry gauge provides clear, reliable pressure monitoring for well systems, compressors, and general-purpose applications. With a 2-inch face and bright markings, this gauge delivers accurate readings in the critical 0-100 PSI range.

Key Features

• Clear Readability: 2" dial with easy-to-read markings
• Dry Gauge Design: No liquid fill, perfect for normal pressure conditions
• Accurate Measurement: Grade B accuracy (3%-2%-3% of full scale)
• 1/4" Lower Mount Connection: Brass fitting for corrosion resistance
• 0-100 PSI Range: 1.0 PSI increment markings
• Temperature Stable: Operates reliably from -40°F to 140°F

Installation Tips

Mount on the discharge side of pressure tanks to monitor system pressure. Lower mount gauges install below the connection point. Replace every 5-7 years for continued accuracy.
