Boshart 3-wire 6 Gauge Black Splice Kit

3-Wire Heat Shrink Splice Kit, 6 Gauge Black

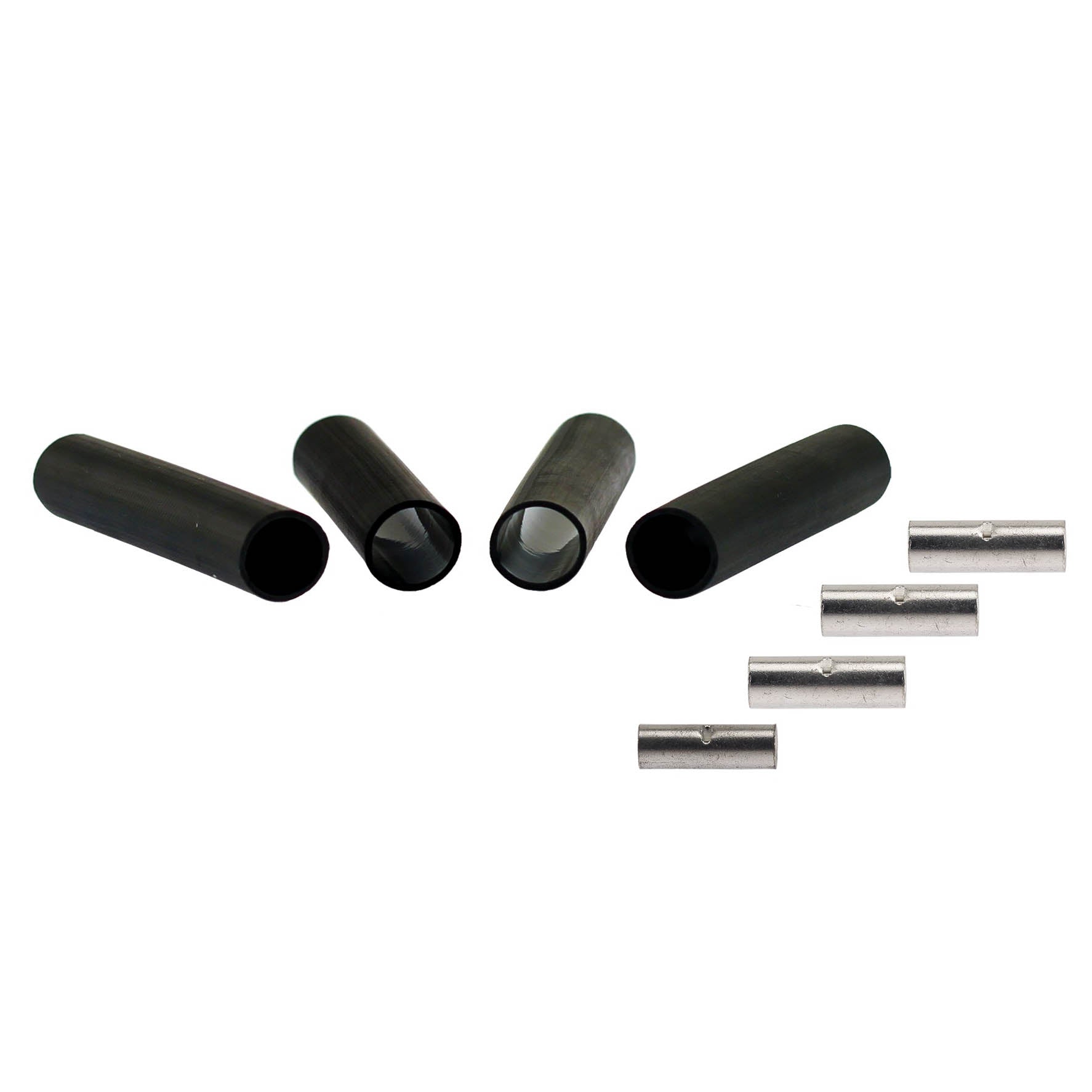

Boshart's HSB6-3 is a heavy-duty heat shrink splice kit for 3-wire submersible pump cables using 6 AWG wire. The black polyolefin tubing with built-in adhesive creates waterproof splices rated to 600 volts, essential for underground pump motor connections.

Key Features

• 3-Wire Configuration: Designed for 3-phase or 3-wire submersible pump motors
• 6 Gauge Wire: Heavy-duty for large submersible pump motors
• Black Polyolefin: Weather-resistant, UV-stable material
• Built-in Adhesive: Creates self-sealing waterproof joint
• 3:1 Shrink Ratio: Above 120°C (250°F)
• 600V Rating: Safe for all submersible pump applications
• Underground Rated: Approved for direct burial
• High-Impact Abrasion Resistance: Mechanical durability in harsh conditions

Installation

Heat applied splice tubing to 120-130°C (250-266°F) using heat gun. Adhesive flows to fill void, creating solid waterproof connection. Ideal for splicing pump motor leads in wells.
