Submersible Well Pump for Reliable Water Delivery

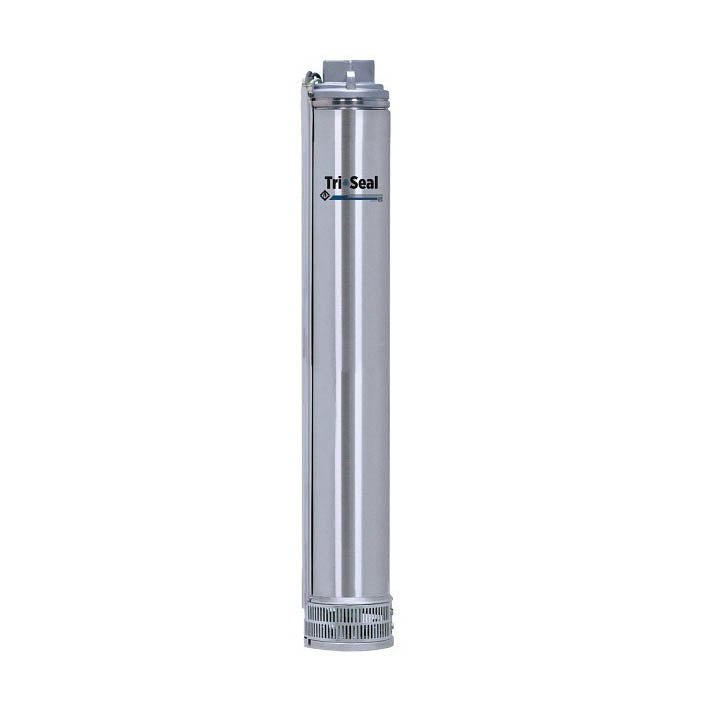

The Franklin Electric Legend series delivers consistent performance for residential and light commercial water systems. These 4" Tri-Seal submersible pumps are engineered for durability in demanding well environments.
Key Features
- Tri-Seal Protection: Three-seal design prevents sand and debris from entering the motor cavity
- Stainless Steel or Thermoplastic Options: Choose SS for corrosive water; thermoplastic for standard conditions
- 2-Wire or 3-Wire Configurations: 2-wire for simple control; 3-wire for pressure switch integration
- PEO (Poly Ethylene Oxide) Available: Ideal for bleach-treated or chemically conditioned wells
Specifications by Model
| GPM | Horsepower | Voltage | Best For |
|---|---|---|---|
| 5–7 | 0.75–2HP | 115/230V | Small homes, low-yield wells |
| 10–15 | 0.5–2HP | 115/230V | Standard homes, moderate wells |
| 20–25 | 1–2HP | 230V | Larger homes, high-demand systems |
Sizing your pump requires matching GPM output to your well recovery rate and household demand. Most residential wells produce 5–15 GPM; check your well log or test pumping rate before ordering.
