Wetland Filter Centre Diffuser Module for PitViper 2.0 Systems

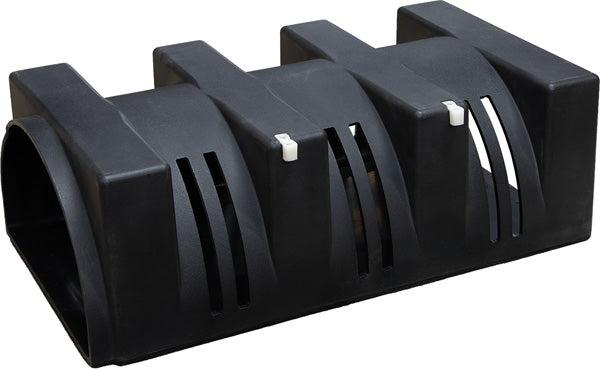

The EasyPro PV-MID Centre Diffuser Module is the building block of a PitViper 2.0 wetland lateral run. Add as many PV-MID modules as needed between the inlet and end to build a lateral of any required length, distributing water evenly across the full width of your wetland filter cell.
Build Any Lateral Length with Modular Sections
Each PV-MID module snaps together with adjacent modules to extend the lateral run. The flat-bottom, trenchless design installs in shallow wetland cells without deep excavation. Water enters from the inlet, travels through each connected PV-MID, and disperses upward through the gravel media, providing even biological filtration across the entire wetland area. Connect a PV-VAULT to any PV-MID for periodic cleanout access.
| Specification | Value |
|---|---|
| Function | Mid-run lateral extension module |
| Installation | Trenchless, flat-bottom |
| Compatible Modules | PV-INLET, PV-END, PV-VAULT, additional PV-MID |
| System | PitViper 2.0 Wetland Diffuser |
How to Install
Connect PV-MID modules in sequence between the PV-INLET and PV-END. Snap modules together and lay flat in the wetland cell before filling with gravel media. Add a PV-VAULT at any mid-run point for future cleanout access. Cover with gravel or filter media to the required depth per the PitViper design guide.
Ideal for all PitViper 2.0 wetland installations where longer lateral runs or wider coverage areas are required.
