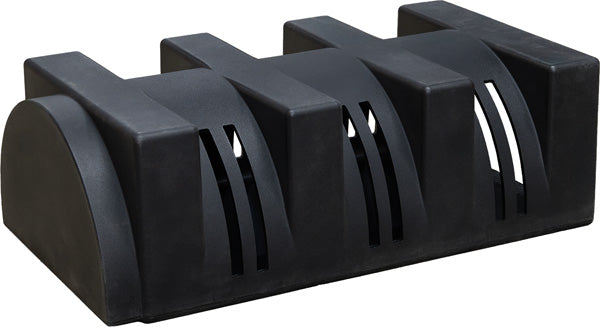

Wetland Filter End Diffuser Module for PitViper 2.0 Systems
The EasyPro PV-END End Diffuser Module terminates a PitViper 2.0 wetland lateral run when no cleanout vault is required at that end. It caps the lateral and ensures water is distributed evenly through the entire diffuser run, from inlet to end, without dead zones.
Terminate Your Wetland Lateral Cleanly
The PV-END snaps directly onto the final PV-MID in the run, sealing the end of the lateral while maintaining full flow distribution along the diffuser. Without a proper end cap, pressure would concentrate at the outlet end and compromise even distribution. Use PV-END for installations where a cleanout vault at the terminal end is not required; use PV-VAULT if cleanout access is desired.
| Specification | Value |
|---|---|
| Function | Lateral end terminator (no cleanout) |
| Installation | Snaps onto final PV-MID module |
| Compatible Modules | PV-MID |
| System | PitViper 2.0 Wetland Diffuser |
How to Install
Snap the PV-END onto the last PV-MID module in the lateral run. Confirm all module connections are secure before covering with gravel. No tools or adhesive required.
Ideal for PitViper 2.0 wetland installations where cleanout access at the terminal end of the lateral is not required.
