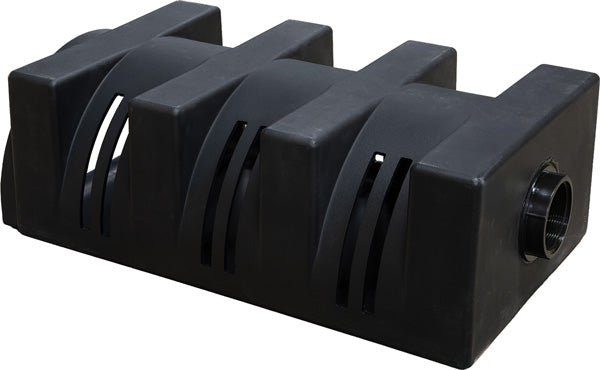

Wetland Filter Inlet Diffuser for PitViper 2.0 Systems
The EasyPro PV-INLET is the starting point of a PitViper 2.0 Wetland Diffuser lateral run. It connects to your supply line from the pump and distributes incoming water across the diffuser modules, initiating the slow, even flow that makes wetland filtration so effective for koi ponds and recreational swim ponds.
Start Your Wetland Lateral with Even Flow Distribution
The inlet module accepts the supply pipe from your pump and transitions flow into the flat-profile PitViper diffuser system. Its trenchless, flat-bottom design requires minimal excavation and can be installed in shallow wetland cells, saving significant labour compared to traditional deep-sump designs. Connect directly to PV-MID or PV-END modules to build out your lateral.
| Specification | Value |
|---|---|
| Function | Wetland lateral inlet connection |
| Installation | Trenchless, flat-bottom |
| Compatible Modules | PV-MID, PV-END, PV-VAULT |
| System | PitViper 2.0 Wetland Diffuser |
How to Install
Place the PV-INLET at the pump-side end of the wetland cell. Connect your supply pipe to the inlet fitting and join to PV-MID modules to build the lateral run. Cover with gravel or filter media per the PitViper installation guide. The flat-bottom profile allows installation in shallow cells with as little as 12" (30 cm) of gravel depth.
Ideal for koi pond wetland filters, recreational swim ponds, and any low-excavation wetland filtration installation using the PitViper 2.0 modular system.
